Drainage Geotextile
Maintenance Drainage Nonwoven Geotextile well and keeps soil stable in construction projects. Workers make it by pushing needles through short fibers to create a thick but water-friendly material. It filters water while stopping tiny dirt bits from moving through.
It lasts long because it doesn’t break down from chemicals or rot. People use it for:
Keeping soil in place on hills
Building roads
Protecting nature areas
Advantages:
Good Water Drainage
This geotextile has many tiny holes that let water drain quickly. It stops water from pooling in soil, which keeps the ground stable and strong.
Filters Well
The thick material lets water pass but blocks tiny dirt bits. This stops soil from washing away or clogging drains.
Lasts Long
Made from tough fibers, it doesn’t break down from chemicals or rot. This means it works well for years, so you don’t need to replace it often.
Safe for Nature
The plastic fibers don’t break down naturally and won’t poison soil or water. This keeps the environment clean.
Works for Many Jobs
People use it to protect hillsides, build roads, and save nature areas. It fits easily into different projects to drain water and hold soil in place.
Saves Money
By draining water properly and stopping soil from washing away, it prevents damage to roads and land. This saves money on repairs over time.
Technical Data:
Test Properties | Units | Product Specification | |||||||||||
Mechanical Properties | Weight | g/m2 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 |
Weight Variation | % | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | |
Thickness | mm | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.1 | 5 | |
Width Variation | % | -0.5 | |||||||||||
Break Strength (MD and XMD) | KN/m | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 | |
Break Elongation | % | 25-100 | |||||||||||
CBR Burst Strength≥ | KN | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | |
Tear Strength≥(MD and XMD) | KN | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | |
Hydraulic Properties | Sieve Size O90 | mm | 0.07~0.20 | ||||||||||
Application:
Soil Stabilization
This geotextile strengthens soil and helps water drain. Workers put it between soil layers or where soil meets other materials. This stops soil from shifting or washing away.Slope Protection
Steep slopes easily lose soil or collapse. It is laid on slopes to drain water and hold soil together. This lowers the chance of soil sliding away or breaking down. It also makes slopes last longer.Road Construction

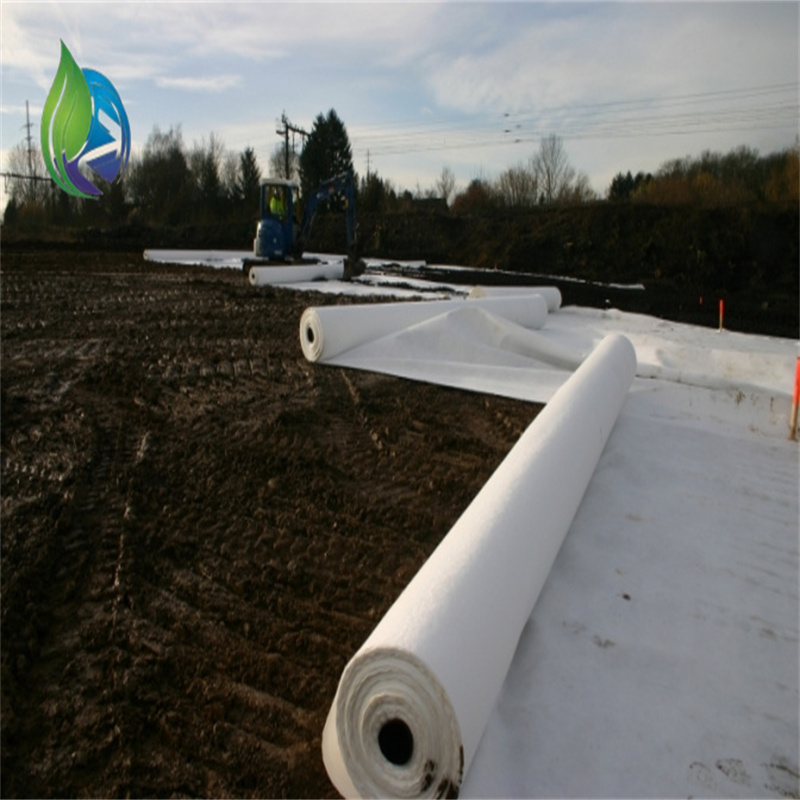

In roads,it sits between the road base and the ground below. It blocks tiny dirt bits from clogging drains and lets water flow out. This keeps roads dry and strong.Landfill Liners
In garbage dumps, it separates trash from soil and groundwater. It blocks harmful chemicals but lets rainwater and dirty liquids drain safely.Erosion Control
In places like riverbanks or beaches where soil washes away, it covers the ground like a blanket. It keeps soil in place, drains water, and protects against wind and rain damage.Drainage Systems
It works as a filter in ditches or canals. It stops dirt from entering drains but lets water pass through. This keeps drainage systems working well without clogs.Environmental Protection
For nature projects, the geotextile traps pollutants, stops dirt from moving, and stabilizes soil. People use it when fixing wetlands, managing rainwater, or other jobs to protect the environment.

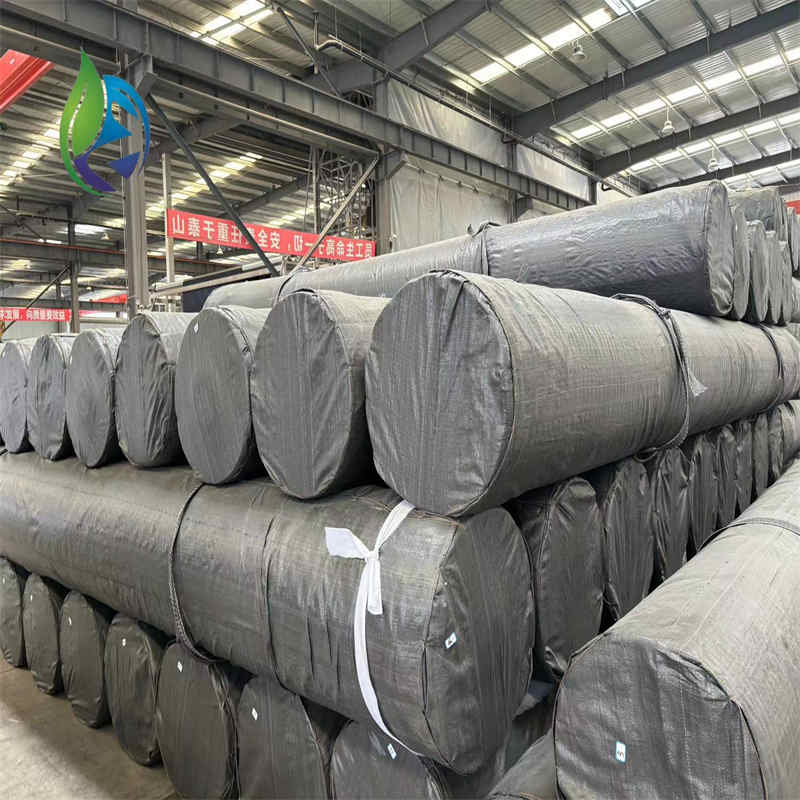

Packaging:
Customer's company Logo mark can be added.
Packed in woven bags.
