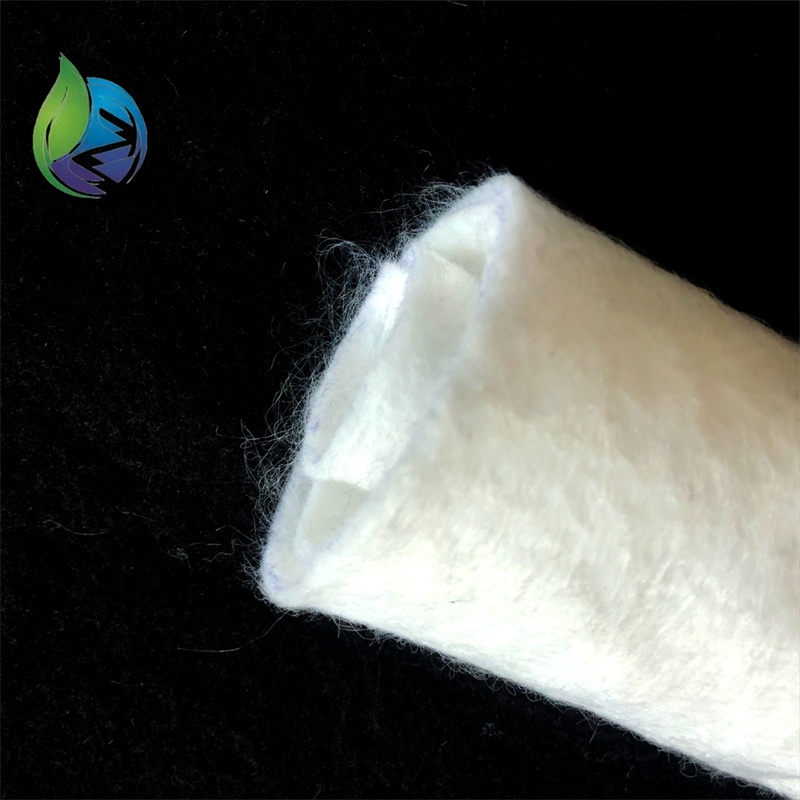

High Strength Filament Geotexile
High Strength Fabric Anti-aging Continuous Filament Non-woven Geotextile is specifically designed cloth to meet the rigorous necessities of geotechnical and environmental engineering applications.
This special geotextile consists of non-stop filaments that are woven or knit to create a non-woven material that presents tremendous power and durability.It is a sturdy and reliable fabric that affords notable ordinary overall performance in geotechnical and environmental engineering applications.
Its anti-aging properties, immoderate strength, and flexibility make it a treasured machine for enhancing the stability, durability, and usual overall performance of pretty a wide variety constructions and systems.
Advantages:
High Strength Fabric Anti-aging Continuous Filament Non Woven Geotexile has anti-aging performance, indicating that it possesses its architecture and utility for a longer amount of time, even in extreme environmental situations. This is accomplished by applying materials of excellent quality and the use of high-level manufacturing process that increases the resistance of the fabric against UV radiation, chemicals, and biological degradation.
Almost indestructible
Anti-aging Properties
Flexible and Conformable
Great Filtration Properties
Eco Friendly
Cost-effective
Technical Data:
Test Properties | Units | Product Specification | |||||||||||
Mechanical Properties | Weight | g/m2 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 |
Weight Variation | % | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | |
Thickness | mm | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.1 | 5 | |
Width Variation | % | -0.5 | |||||||||||
Break Strength (MD and XMD) | KN/m | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 | |
Break Elongation | % | 25-100 | |||||||||||
CBR Burst Strength≥ | KN | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | |
Tear Strength≥(MD and XMD) | KN | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | |
Hydraulic Properties | Sieve Size O90 | mm | 0.07~0.20 | ||||||||||
Application:
1.Slope Stabilization: In landscaping and earthworks, the geotextile is used to assist slopes, prevent soil erosion, and furnish stability to hillsides and embankments. It acts as a reinforcement layer that will make bigger the common strength and steadiness of the slope.
2.Soil Reinforcement: In road construction, railways, and exclusive civil engineering projects, the geotextile is used to enhance soil layers. It improves the bearing conceivable of the soil and reduces the hazard of contract or deformation.
3.Erosion Control: The geotextile is an terrific gadget for erosion control in riverbanks, shorelines, and special areas inclined to water erosion. It acts as a protecting barrier that prevents soil particles from being washed away by means of the use of water.
4.Drainage Systems: In constructing projects, the geotextile is often used in drainage buildings to separate soil from water. It approves for relevant drainage of water even as stopping soil clogging, enhancing the standard drainage efficiency.
5.Separation Layers: In geotechnical structures, the geotextile can be used as a separation layer between one-of-a-kind soil layers or between soil and specific materials. It prevents the mixing of incompatible elements and continues the integrity of the structure.
6.Environmental Protection: The geotextile is moreover used in environmental security duties such as wetlands restoration, landfills, and waste containment facilities. It acts as a barrier that prevents contaminants from leaching into the surrounding environment.

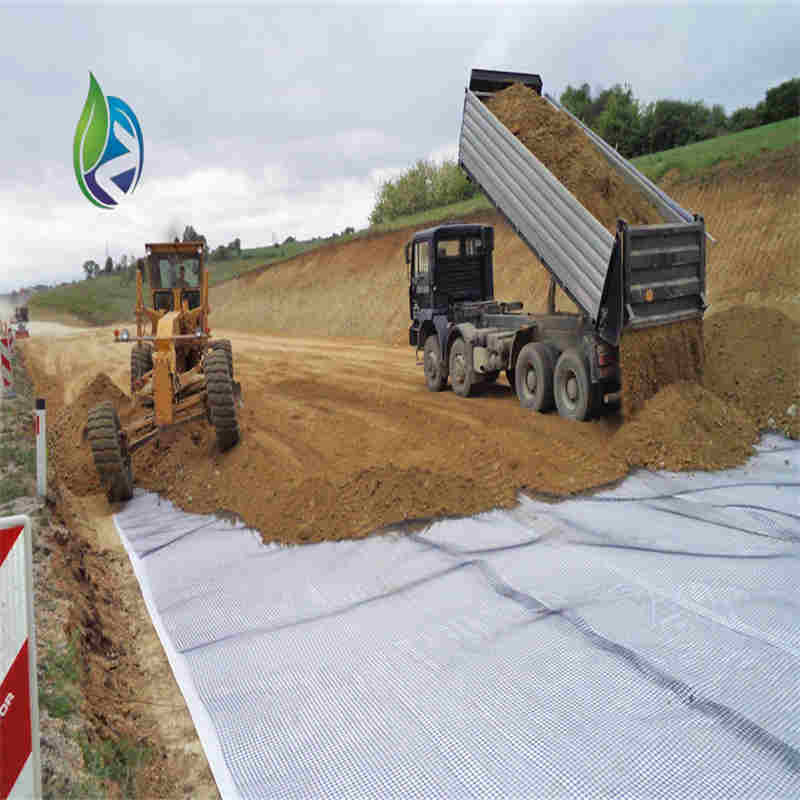

7.Road Construction: In avenue construction, the geotextile is used as a separator between the subgrade and the pavement layers. It improves the load-bearing functionality of the avenue and extends its provider life.
Packaging:
Customer's company Logo mark can be added.
Packed in woven bags.
